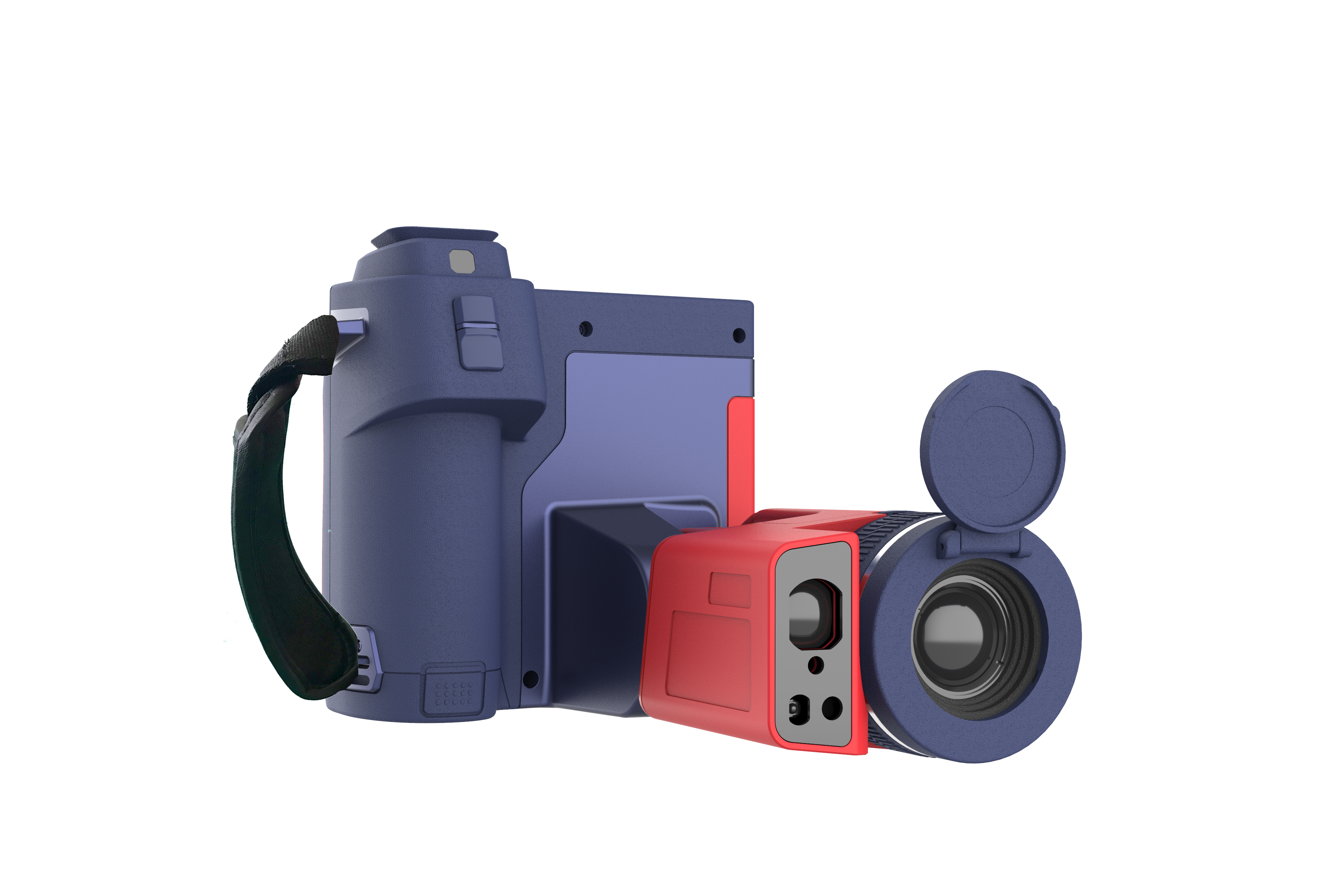

FOTRIC P5 High-performance Thermal Camera
FOTRIC P5 Industrial Thermal Camera offers up to 384*288 thermal resolutions, exceptional image quality, and precision for inspection work. With an optional dual-view lens, you won't need to carry or change lenses, saving time and space. The P-series cameras boast top-class performance with <30mk sensitivity. They also include on-device analysis power and a laser area measurement function. These cameras are also compatible with advanced software such as AnalyzIR® and NaviPdM®, revolutionizing how inspections utilize thermal cameras. Get the most out of your inspection work with the P-series thermal imager now!
Main Specifications
Product Catalog & Full Specifications
Thermal Analysis Software
| Model | FOTRIC P5 |
| Infrared Resolution |
384*288
|
| Detector Type | Uncooled infrared focal plane detector |
| Thermal Sensitivity（NETD) | 30mk(0.03°C) |
| Frame Rate | 30Hz |
| Optional Lens | Refer to the "Lens" Sheet in Catalog |
| Focus Mode | TurboFocus™ Speedy Intelligent Autofocus system for continuous, laser distance, graphic contrast, manual |
| Digital Zoom | 1-12x |
| Key Features | NaviPdM® (Optional) T-DEF® IREdge T-TWB® |
| Measurement Range | -20℃ ~ 120℃ (-4° F to 248° F)，0℃ ~ 700℃ (32° F to 1292° F)， 300℃ ~1550℃ (572° F to 2822° F) (Not applicable to dual-view or macro lenses) |
| Accuracy |
± 2℃ or ± 2 %, whichever is greater,
(ambient temp at 25℃ )
|
| User-definable Measurement Tools (on device) |
20 spot markers 20 (rectangle or circle) 20 measurement lines |
| On-screen Analysis | Emissivity, Partially emissivity, Reflected temperature, Ambient temperature, Humidity, Distance, and IR window compensation. |
| Software |
AnalyzIR®, NaviPdM®
|
| Image Mode | Thermal\Digital\Picture-in-Picture\T-DEF® |
| Palettes | 16 standard palettes: Grey、Iron10、Iron、Rainbow、Grey10、GreyRed、MidGrey、Yellow、Rain、Rain10、Blue、GlowBow、Medical、Medical10、MidGreen、Prism. 16 inverted palettes |
| Highest/Lowest Temp Spot Mark | Yes,full-screen and measurement boxes both with highest/lowest temp spot marker |
| Digital Camera | 5-mega pixel and 13-mega pixel |
| Storage | SD card of 64 GB memory, support expansion to 2TB |
| Scan Function | Support for QR code and Barcode |
| Annotation | Support Voice\Text\Bookmark\Favorate |
| Gallery | Image preview and analyze, video preview and analyze |
| Data Connectivity | WiFi Connection Bluetooth Connection USB Interface HDMI Interface FTP Data Transfer |
| Laser Measurement | Distance, Length, and Area |
| LED Light (torch and flash lamp) | Support |
| Battery Type | 3.6V，10000mAh lithium |
| Battery Life | 2 rechargeable batteries, over 4 hours per battery |
| Enclosure Rating | IP54 |
| Warranty | 2 years (standard), extended warranties are available,10 years for core detector |
| Supported Languages |
English, Spanish, German, Italian, Korean, Portuguese, Chinese Traditional
|
*Some features might be added or slightly altered according to the region and country
